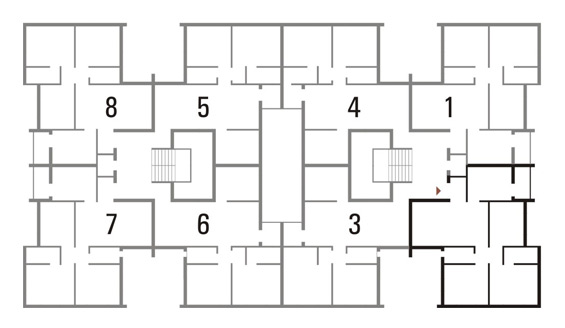

| Floor Plan |

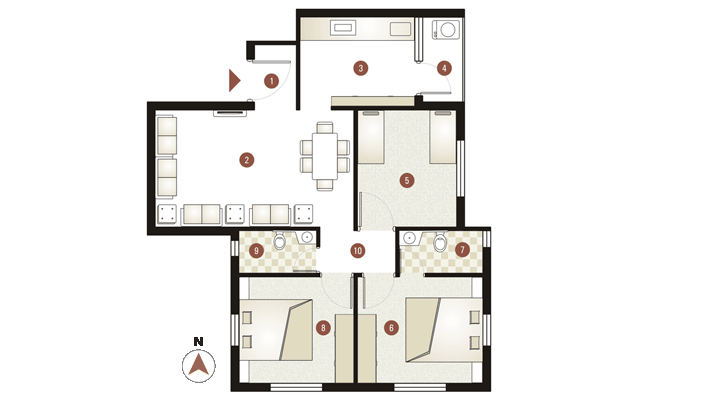

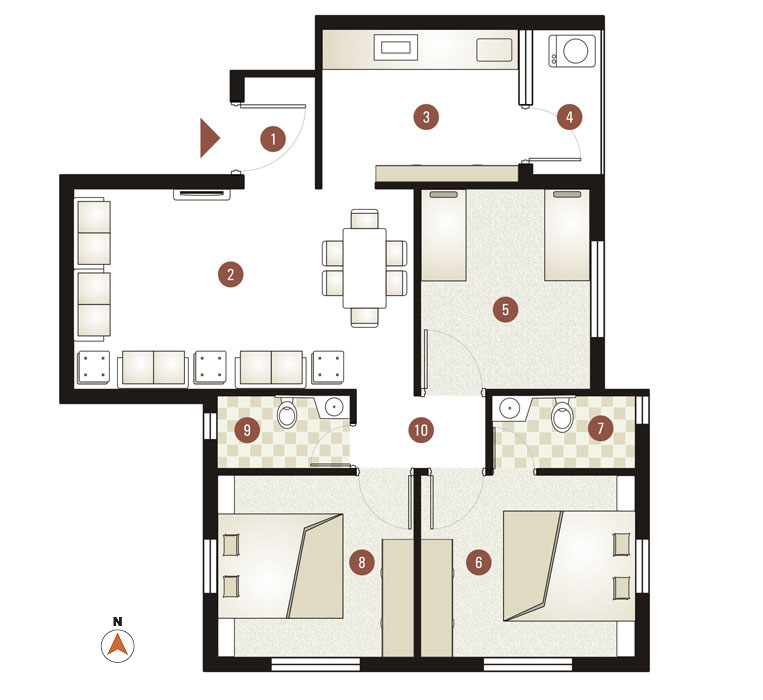

Legend |
| |
|
 |
| 01 |
ENTRANCE FOYER |
6'.0" x 5'-0" |
06 |
MASTER BED ROOM |
12'.0" x 10'-0" |
| 02 |
LIVING / DINING |
19'.0" x 11'-0" |
07 |
TOILET |
8'.0" x 4'-0" |
| 03 |
KITCHEN |
11'.0" x 8'-6" |
08 |
BED ROOM - 2 |
11'.0" x 10'-0" |
| 04 |
WASH |
4'.0" x 8'-0" |
09 |
TOILET |
7'.6" x 4'-0" |
| 05 |
BED ROOM - 1 |
9'.6" x 11'-0" |
10 |
UTILITY |
7'.3" x 4'-6" |
|
| |
|
|
